Connecting Fittings

Dowel for eccentric Ø 7. EURO

Material Ø I M L Article Code
Steel 7 34 EURO 11 011.009.00049
Steel 7 24 EURO 11 017.009.00050

1000 pcs

Dowel for eccentric Ø 7 M6

Material Ø I M L Article Code
Steel 7 34 M6 8 017.009.00051

1000 pcs

Contrafix Dowel Ø 7 M6

connecting-fitting-3

Material Ø I M L Article Code
Steel 7 28.5 M6 43.5 017.009.00052

100 pcs

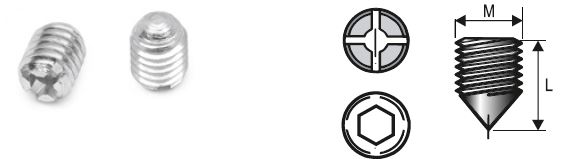

Grub screw for contra fix cam

Material Colour M L Article Code
Steel White Zinc M6 9 017.038.00001
Steel White Zinc M6 12 017.038.04409

100 pcs

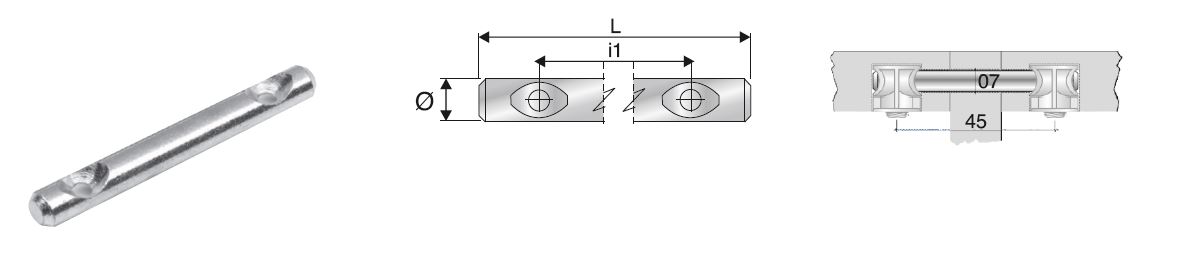

Contrafix Dowel Ø 7 M6

Material Ø L M i1 F Article Code
Steel 7 62 M6 42 45 017.038.04850

100 pcs

Grub Screw for Contrafix double dowel

Material Colour M L Article Code
Steel White Zinc M6 13 017.038.04849

100 pcs

Cam for contrafix

Material Colour Ø I M L Article Code
Steel White Zinc 10 8 M6 13 017.009.04527
Steel White Zinc 10 9 M6 14 017.009.00058
Steel White Zinc 10 12,5 M6 17,5 017.009.04410

100 pcs

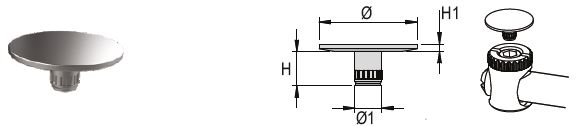

Cover Cap for Contrafix Cam, Ni. Pl

Ø Ø 1 H H1 Article Code
11 3,2 4 1 043.012.04411

100 pcs

K.Ku Connecting Fitting

  • Concealed inter-wall junction between panel and frame
  • Easy assembly
  • Very compact and resistance

Product Name Article Code
K.Ku Interwall fitting 016.009.04068

All dimensions in millimetres.

Wedgefix Ø 20

connecting-fittings-13

Material Colour Ø I L Article Code
Nylon White 20 9.5 14 017.009.00065

500 pcs

Wedgefix Connecting screw

connecting-fittings-14

Material Ø M L Article Code
Steel 5 6 EURO 9.5 017.038.00003

500 pcs

Camfix Ø 20

connecting-fittings-15

Material Colour Ø M L Article Code
Nylon White 20 – 14 017.009.00066

500 pcs

Camfix Connecting screw

connecting-fittings-16

Material Ø M L Article Code
Steel 5 EURO 11 017.038.00004

500 pcs

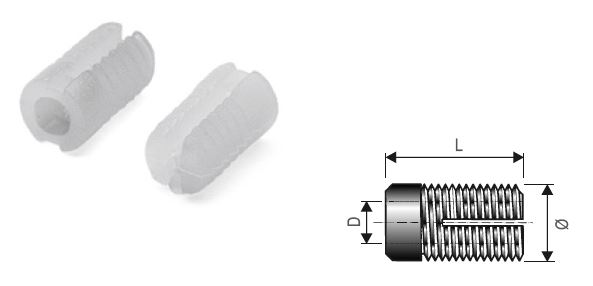

Expandable Insert 5 mm

Material Ø I D L Article Code
Nylon 5 – 3 13.5 014.022.00081

1000 pcs

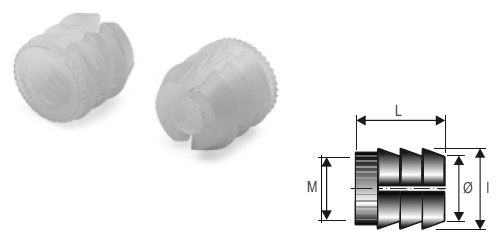

Nylon Insert

Material Ø I M L Article Code
Nylon 8 9 M6 10 017.022.00082
Nylon 10 11 M6 11 017.022.00083

1000 pcs

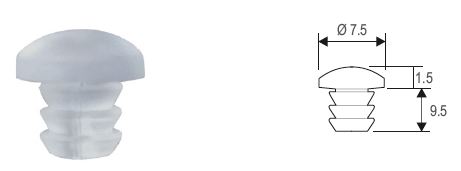

Press Type Door Bumper 5 mm

Material Size Article Code
Silicon 5mm 014.006.00031

500 pcs

Insert Expandable Ø8, L 11 For Contra Fix Bolt

Material Ø I M L Article Code
Nylon 8 9 M6 11 017.022.04634
Nylon 10 11 M6 11 017.022.04635

1000 pcs

Barrel Screw M4,L18

Material Colour Ø I M L Article Code
Steel Brass 5 – M4 18 005.038.00002

100 pcs

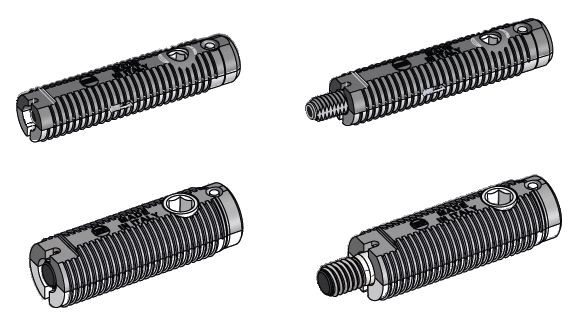

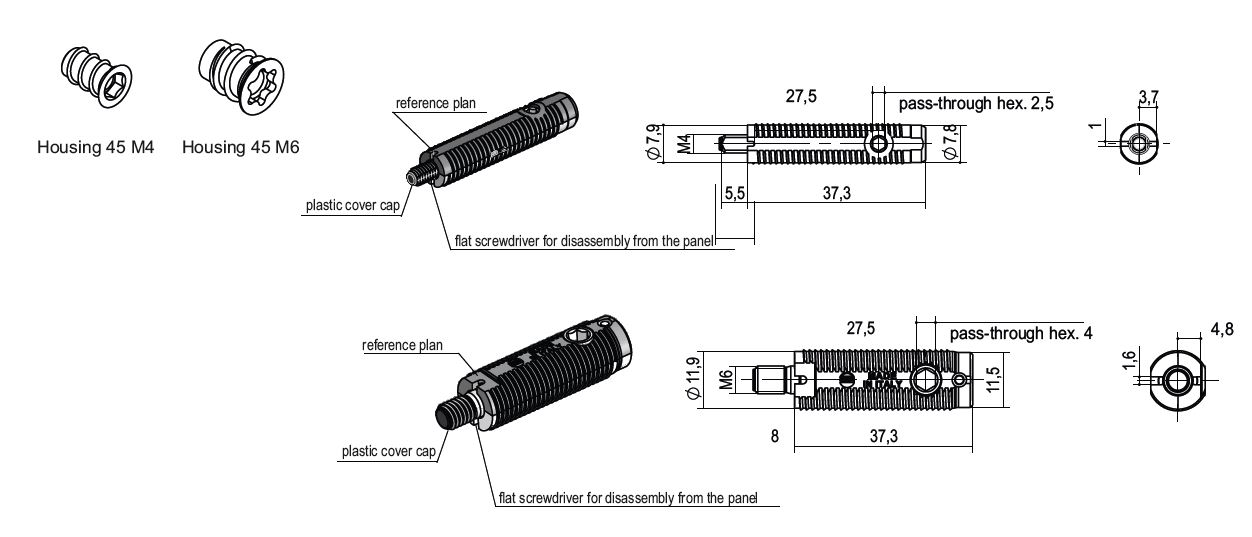

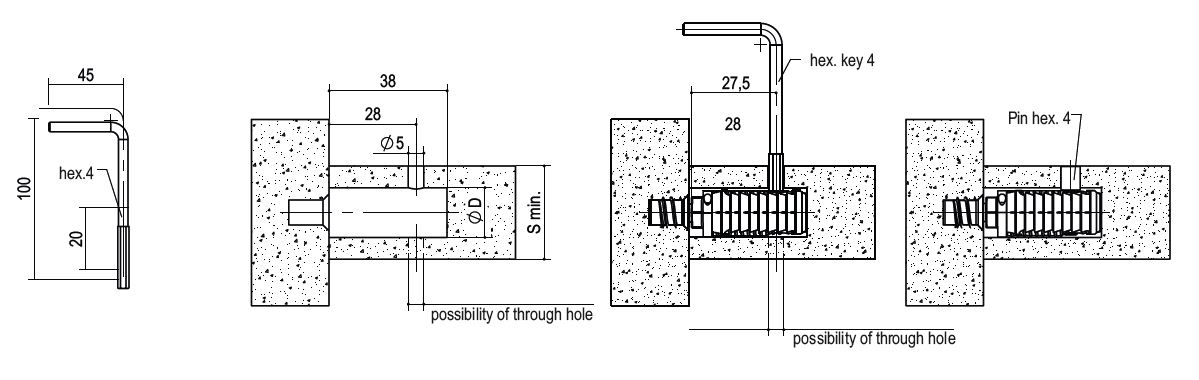

GN 508 / GN 512

  • High resistance pull out force 1000 N
  • Strong connection with 1500 N holding power
  • Unidirectional fast installation
  • For installations in limited space
  • No space required for dismantling
  • Extremely small visible hole of just 5 mm
  • Ideal system for 18 and 25 mm board thickness
Product Name Article Code
Invisible shelf support GN508 M6 Ø8 X 28 016.009.05139
Brass bush hole Ø5X12 M4 016.022.05140
Invisible shelf support GN512 M6 Ø12 X 28 016.009.05153
Brass bush hole Ø8X12 M6 016.022.05154
ØD S min.
8 12≡14
12 18

1 pc

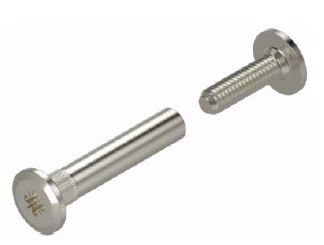

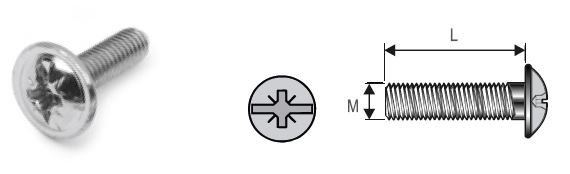

M4 Screw (Cabinet Connector)

Product Name Article Code
Barrel Screw M4 Flat Type For Cabinet Connecter L 28.5 017.038.05276
Screw M4 Flat type For Cabinet Connecter, L 17 017.038.05277

1000 pcs

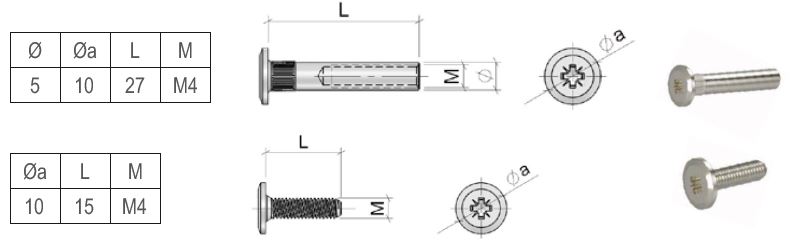

M4 Screw (Cabinet Connector)

Material Finish M L Article Code
Steel Nickel M4 15 017.038.00005
Steel Nickel M4 20 017.038.00006
Steel Nickel M4 25 017.038.00008
Steel Nickel M4 30 017.038.00009

500 pcs

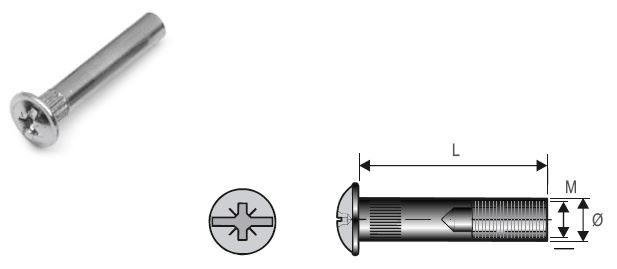

Barrel Screw (Cabinet Connector)

Material Finish Ø M L Article Code
Steel Nickel 5 M4 27 017.038.00009

500 pcs

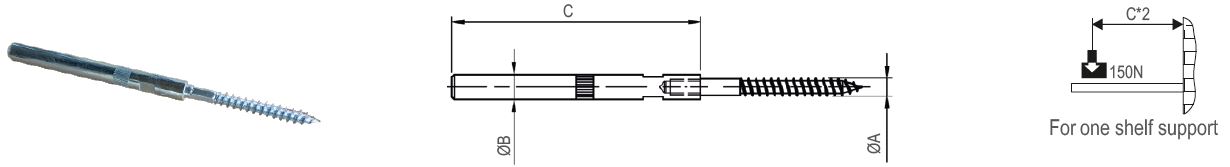

Shelf Support Basic

Product Name A B C Finish Article Code
6 12 120 White Zinc 030.008.02194

1 pc

Wooden Dowel 8 x 40 mm

Produc Name Article Code
Wooden Dowel 8 x 40 mm 017.067.02204

Beta M for 18 mm

connecting-fittings-9
Material Finish mm Product Name Article Code
Zamak Nickel 18mm Beta M Housing 005.009.00059
Zamak Nickel 18mm Beta M Holder 005.009.00060
Brass Natural M4x10x5 Insert Expandable Bush 005.022.00079

500 pcs

Beta M for 25 mm

connecting-fittings-10
Material Finish mm Item Name Item Code
Zamak Nickel 25mm Beta M Housing 005.009.00061
Zamak Nickel 25mm Beta M Holder 005.009.00062
Brass Natural M4x10x5 Insert Expandable Bush 005.022.00079

500 pcs

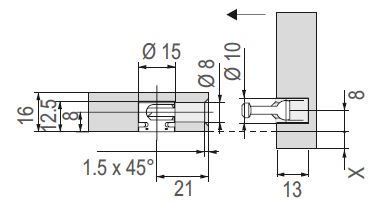

Front Bottom Connector

connecting-fittings-4

Material Ø I M L Article Code
Steel 10 21 8 13 006.009.00053
Zamak 15 8 – 12.5

All dimensions in millimetres. 10 Sets

Eccentric connecting fitting Ø15

connecting-fittings-5

Material Finish Ø I L Article Code
Zamak White Zinc 15 7.5 12 017.009.00054
Zamak White Zinc 15 9-9.5 13.8 017.009.00055
Zamak White Zinc 12 6.5 10.5 017.009.00056
Zamak Nickel 15 9-9.5 13.8 017.009.00057

1000 pcs

Rhino Fitting

rhino-m

Material Finish Ø L Item Code
1. Rhino Cam – Zamak Nickel 15 12 043.009.03225
Material  Ø  Ø1  I  L  Item Code
2. Rhino Bolt – Steel 8 6.6 26 8 043.009.03227
Material Ø Ø1 M L Item Code
3. Rhino Insert Nut – Zamak 10 12 M6 13 043.009.03229

Elephant Fitting

elephant-fit-m

Material Finish Ø M L Article Code
1. Elephant Cam- Zamak White Zinc   35   6  16   043.009.03124
Material Ø Ø1 I M L Article Code
2. Elephant Bolt – Steel 8,4  7,75 59,2 M8 11  043.009.03226
Material Ø Ø1 Ø2 M L Article Code
3. Elephant Insert Nut – Zamak 10 12.5 14 M8 15 043.009.03228

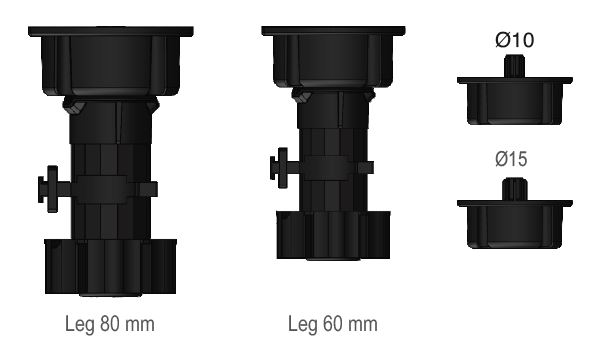

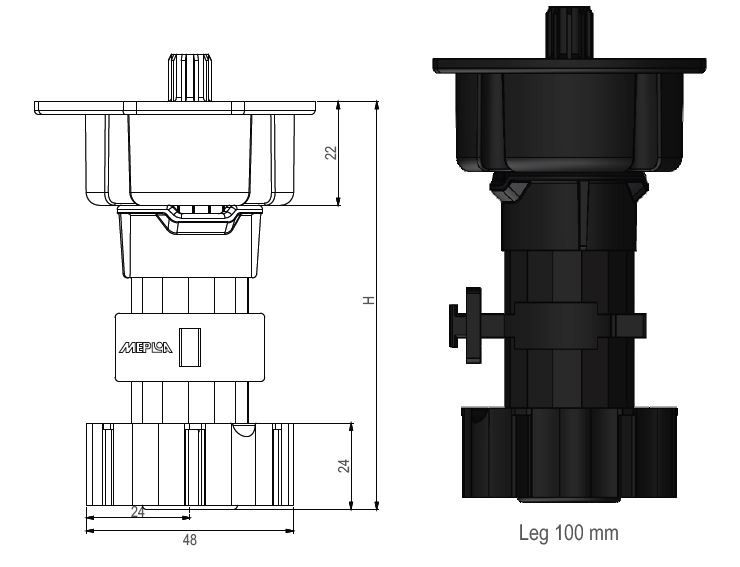

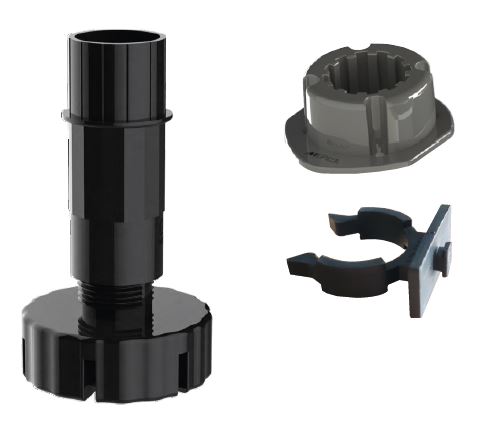

Leg for Cabinet

  • Easy installation
  • Adjustment in Height :
  • 100 mm : + 10 / – 10 mm
  • 80 mm : + 10 / – 7 mm
  • 60 mm : + 10 / – 7 mm
  • Weight capacity: 200 kg
Product Name Article Code PU
Skirting Clip 014.001.04747 20 pcs
Leg 100 mm with screw fixing top 014.001.04746 200 pcs
Leg 100 mm with Ø10 mm dowel 014.001.04878 200 pcs
Leg 100 mm with Ø15 mm dowel 014.001.04879 200 pcs
Product Name Article Code PU
Skirting Clip 014.001.04747 20 pcs
Leg 80 mm with screw fixing top 014.001.05286 200 pcs
Leg 80 mm with Ø10 mm dowel 014.001.05287 200 pcs
Leg 80 mm with Ø15 mm dowel 014.001.05288 200 pcs
Product Name Article Code PU
Skirting Clip 014.001.04747 20 pcs
Leg 60 mm with screw fixing top 014.001.05289 200 pcs
Leg 60 mm with Ø10 mm dowel 014.001.05290 200 pcs
Leg 60 mm with Ø15 mm dowel 014.001.05291 200 pcs

PU : Skirting Clip *20 pcs / Leg and Dowel *200 Pc

Accessories

  • For a solid connection between bottom and front.
  • Allows subsequent adjustment of the front panel (horizontally and vertically)
  • Recommended for drawers from cabinet width above 800 mm
Article Code
006.009.00053

Punch
