Shelf Support

Shelf Support with Pin, Natural Plastic Coating

shelf-support-with pin-natural plastic

Material Ø L L1 L2 Article Code
 Steel  5  8  8  9 017.040.00089

Shelf Support “Nickel”

Material Ø L L1 L2 Article Code
 Steel  5  7.5  8.3  13 017.040.00090

500 pcs

Glass Shelf Support with Silicon

Material Ø L L1 L2 Article Code
Steel  5  7.5  8.3  13 017.040.00091

500 pcs

Shelf Support “Nickel” with 2 Pin

Material Ø L L1 L2 Article Code
 Steel  5  7.5  8.3  13 017.040.03554

500 pcs

Alfa Glass Shelf Support

Material Finish Item Code
Zamak Nickel 005.040.00100

100 pcs

All dimensions in millimetres.

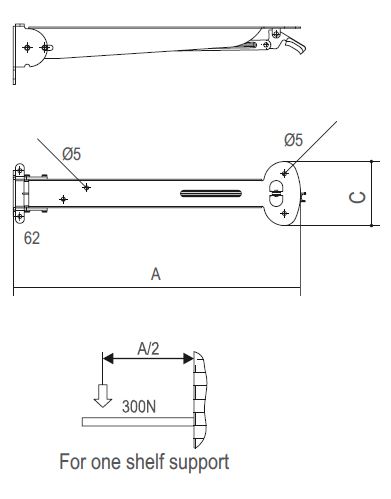

Shelf Support Type MN 191

Product Name A B C Finish Article Code
MN 191. 180 43 55 White 016.008.00038
MN 191. 280 75 80 White 016.008.00039
MN 191. 355 75 80 White 016.008.00040

1 pc

Flipper


Product Finish Item Code
Flipper White 017.040.00096
Beige 017.040.00097
Light Brown 017.040.00098
Brown 017.040.00099
Flipper pin White Zinc 017.067.00086
Flipper Pin 2 White Zinc 017.067.00087
Insert M4 for
Flipper Pin 2		 Nickel 017.022.00084

500 pcs

Mono Ghost

Shelf support is designed for panels from 16mm thick. It’s mounted inside a milling made on the side of the shelf and it’s anchored to the head of a pin inserted in a hole made on the side panel. Invisible on furniture. A cap is provided in case of a double-sided configuration.
Material: acetal.
Product Name Article Code
Mono Ghost Metal Screw 5 mm Euro 005.009.02713
Mono Ghost Front Part 005.009.02714
Mono Ghost Back Part 005.009.02715

Invisible Shelf Support

The invisible refinement for each shelf and each furniture carcase from the material thickness of 15mm onwards. Assembly connections of bottom, frame covers and side panels work like being glued with the new invisible furniture connectors. Shellproof connections without any visible assembly items and nevertheless easy to dismantle. Simply ingenious.
Material Parts Article Code
ABS Upper 015.009.00071
ABS Lower 015.009.00072

Alfa Stop

alfa stop

Material Finish mm Article Name Article Code
Zamak Steel Nickel 18 mm Alfa stop 18 mm Housing 005.009.00068
Zamak Steel Nickel 18 mm Alfa stop 18 mm Holder 005.009.00067
Zamak Steel Nickel 25 mm Alfa stop 25 mm Housing 005.009.00070
Zamak Steel Nickel 25 mm Alfa stop 25 mm Holder 005.009.00069

500 pcs

Invisible Shelf Support

invisible shelf support

Invisible Shelf Support

The invisible refinement for each shelf and each furniture carcase from material thickness 15 mm
onwards. Assembly connections of bottom, frame,covers and side panels work like being glued
with the new invisible furniture connectors. Shellproof connections without any visible assembly
items and nevertheless easy to dismantle. Simply ingenious.

Material Parts Article Code
ABS Upper 015.009.00071
ABS Lower 015.009.00072

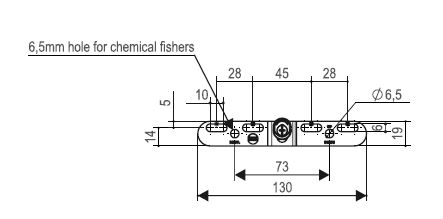

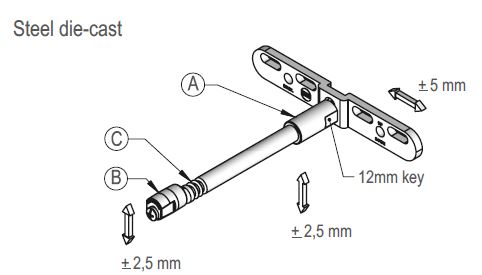

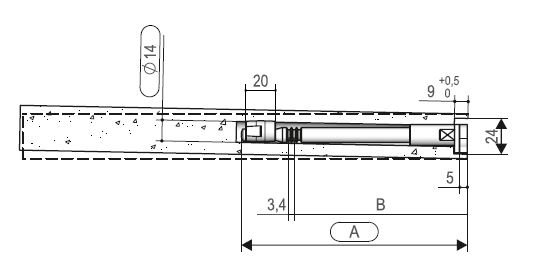

Shelf Support Type MN112

General advantages:

  • Double adjustments
    “a” horizontal
    “b” inclination
  • Possibility to insert a grain
    (“c” locate) for anti-drop System.
    We suggest to adjust by Placing the shelf on the
    Supports and insert it after the adjustments.
Product Name Measure A B Finish Article Code
MN 112.  150  150  105 White Zinc 016.008.00032
MN 112. 175  175  130 White Zinc 016.008.00033

1 pc

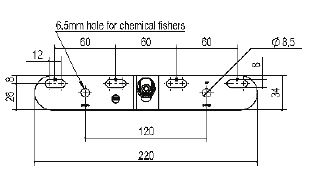

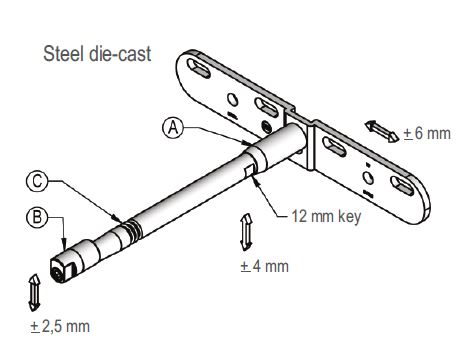

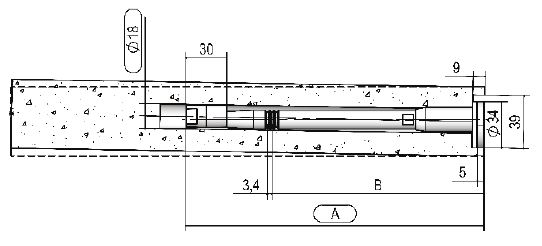

Shelf Support Type MN114

General advantages:

  • Double adjustments
    “a” horizontal
    “b” inclination
  • Possibility to insert a grain
    (“c” locate) for anti-drop System.
    We suggest to adjust by Placing the shelf on the
    Supports and insert it after the adjustments.
Product Name Measure A B Finish Article Code
MN 114. 220. 220  145 White Zinc 016.008.00034
MN 114. 350.  350  275 White Zinc 016.008.00035

1 pc

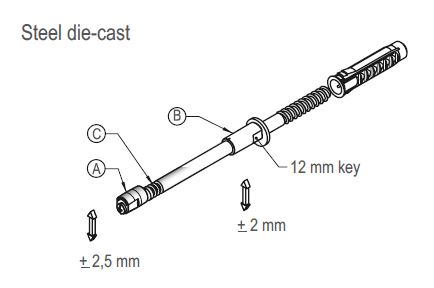

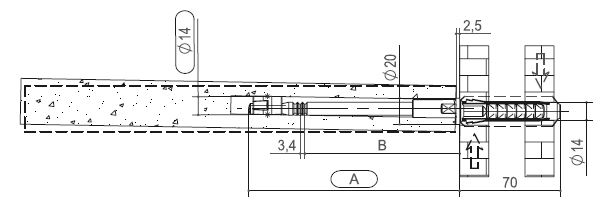

Shelf Support Type MN 115

General advantages:

  • Double adjustments
    “a” horizontal
    “b” inclination
  • Possibility to insert a grain
    (“c” locate) for anti-drop System.
    We suggest to adjust by Placing the shelf on the
    Supports and insert it after the adjustments.
Product Name Measure A B Finish Article Code
MN 115. 145. 145 100 White Zinc 016.008.00036
MN 115. 170. 170 125 White Zinc 016.008.00037

1 pc

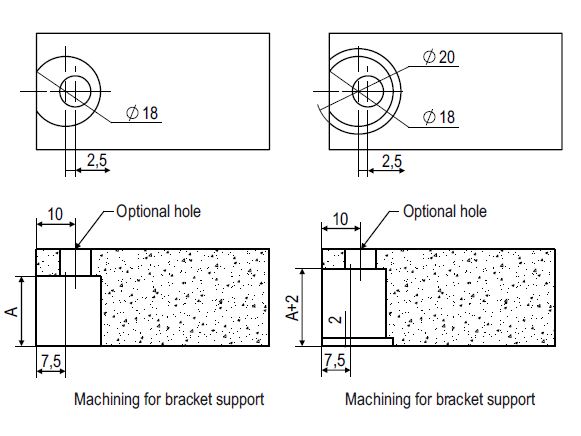

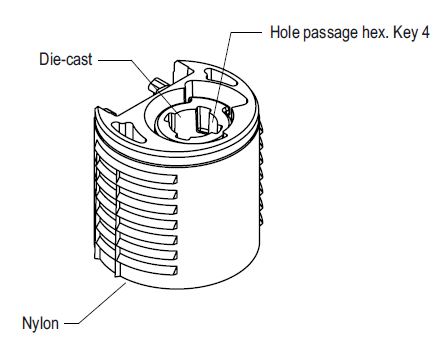

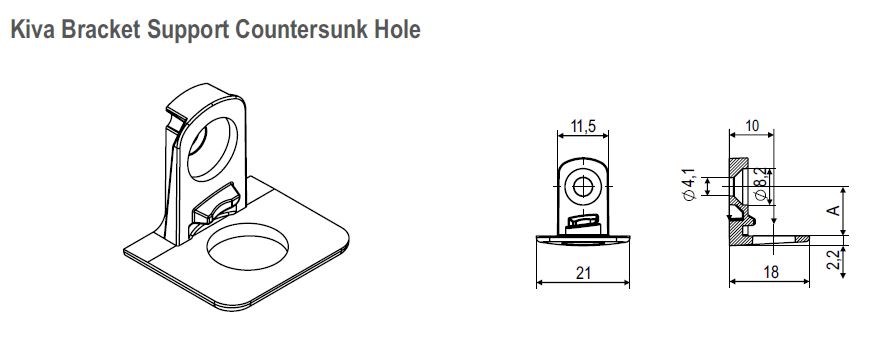

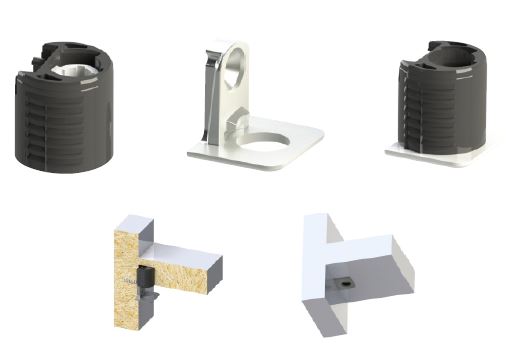

Kiva Shelf Support

  • Shelf support with integrated anti-release
    system that can be operated above and below
  • Positive locking
  • Vertical assembly
  • Sleek and minimalist look
Product Name Article Code
Kiva Shelf bracket , Ni 016.009.04067
Kiva Shelf Support Housing dia 18 x 14 005.009.04066

20 pcs
